O’PRO SMALL & SLIM

O’pro slim Horizontal type is a part of the new Atlantic

design program. Its reliable and fast heating classic

point-of-use water heaters.

Thanks to O’pro, an exclusive protection system, their

water heater tank has an increased lifetime of +50%!

 BENEFITS

Thanks to the expertise of our renowned French brand, these powerful small capacity water heaters will get you more hot water in no time!

O’pro slim has a compact round-shape, with invisible fixation, to fit perfectly into any small kitchens, bathrooms, for an isolated drawing point or as auxiliary water heater.

Among other features, a magnesium anode, a new generation of diamond-quality enamel and O’pro ohmic protection technology, an exclusive passive electronic anti-corrosion system, provide an ultimate protection and long-lasting durability.

O’pro slim Horizontal, with several capacities (30L, 50L, and 75L) constitute a smart choice in terms of point-of-use water heaters.

These water heaters are user-friendly, easy to install and quite safe to operate. A smart plug option will make your O’pro small or O’pro slim even easier to install and to use.

They are fully compliant with the European standards for electrical safety and user protection IP 24 or 25. Their high-density insulation foam, high-efficiency water inlet and accurate temperature control, insure energy and cost savings.

Finally, O’pro small &O’pro slim are environmentally friendly thanks to a CFC-free foam.

O’Pro Small & Slim

O’Pro Small & Slim

O’Pro Small & Slim

TECHNICAL DATA

Technical data (horizontal wall mounted)
Capacity

(L)

 Output

(W)

 Voltage

(V)

 Heat-up time at 60°C (Δt=50°C) Energy consumption (kWh/24h at 65°C)
30 2000 230 (220/240) 0h57 0.88
50 2000 230 (220/240) 1h36 1.28
75 2000 230 (220/240) 2h07 1.55

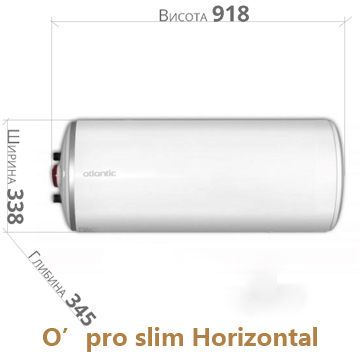

DIMENSIONS

Dimensions (horizontal wall mounted)

Capacity

 (L)

 Dimensions Flange opening

 (Ø mm)

 Net weight

 (kg)
Ø A B C D E
30 338 623 235 155 – – 72 13.5
50 338 918 435 200 – – 72 18.2
75 338 1190 – – – – 72 22
